Bending roll machine 4135
General information

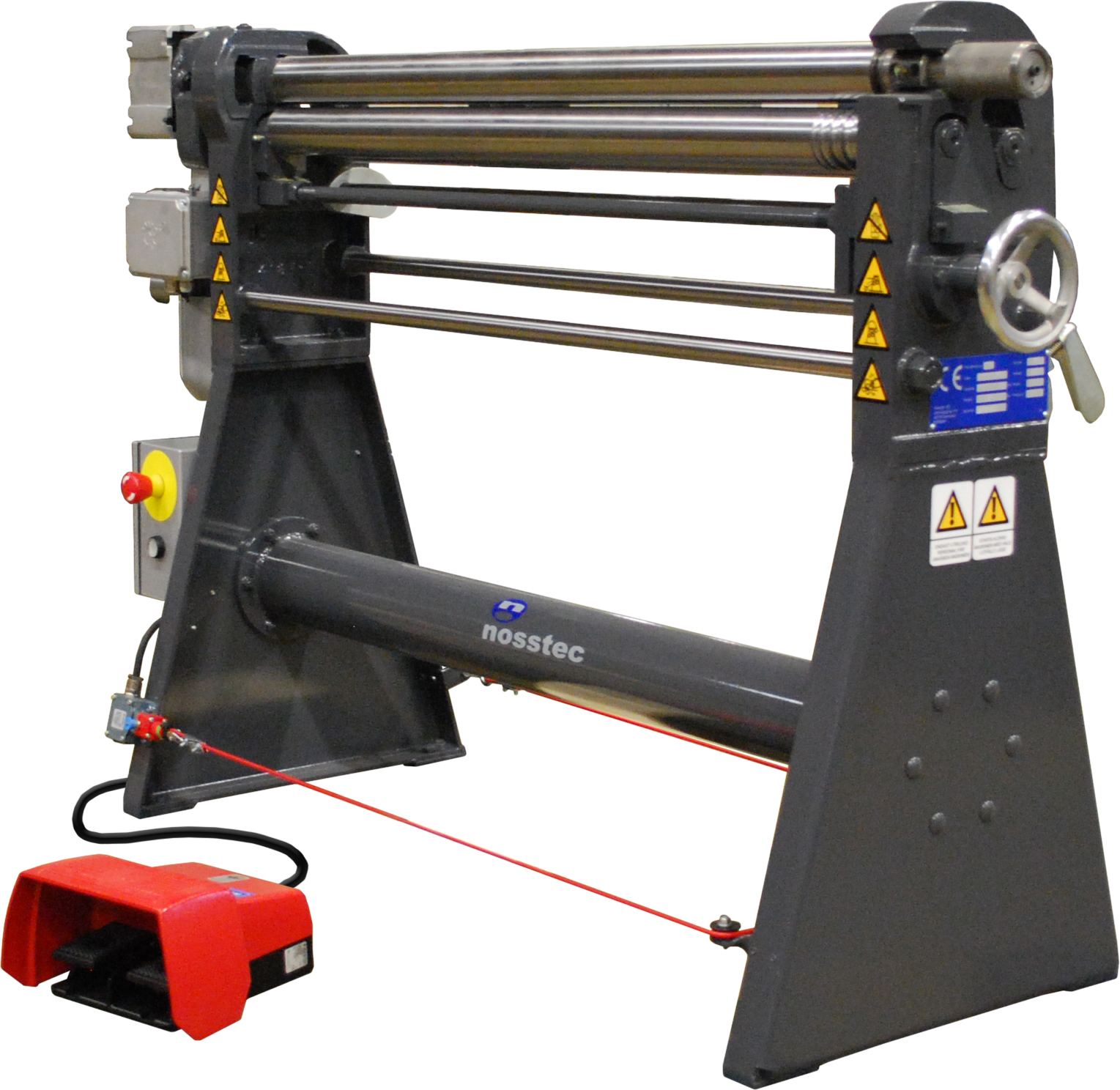

A motor-powered machine with crowned rolls. The lower roll is adjusted by a handwheel. The lower and rear rolls have four different slots for the bending of wire. 4135 is delivered complete with motor, stand as well as foot-operated forward/reverse switch with protective casing. The machine also has a frequency inverter as standard for variable feed speed. Standard electrical connection is 230V 1-phase 16A. The electrical equipment as per protection form IP54.
- Top roll can be swung out
- Cone bending as standard
- Bending roll adjusted by lever
- Crowned rolls
- Medium duty production
Technical data
| Art.no. | 4135 | -0620 | -0615 | -1015 | -1010 | -1212 | -1208 | -1508 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 6/20 | 6/15 | 10/15 | 10/10 | 12/12 | 12/08 | 15/08 | |

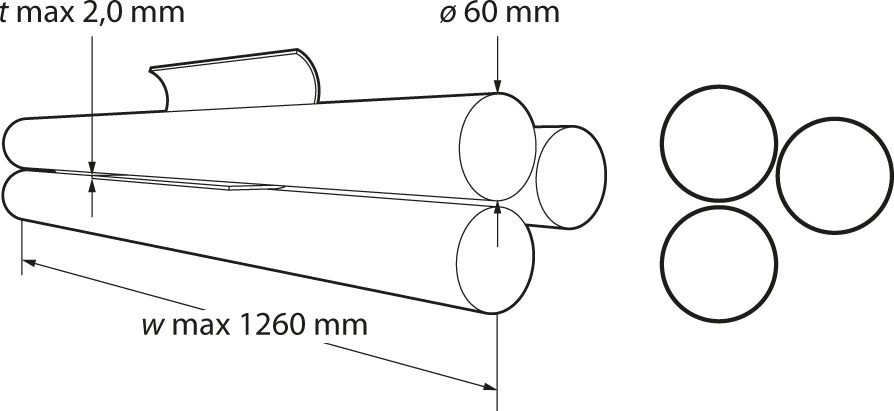

| Working length (w) | mm | 675 | 675 | 1010 | 1010 | 1260 | 1260 | 1510 |
| Max sheet thickness (400N/mm²) (t) | mm | 2,0 | 1,5 | 1,5 | 1,0 | 1,25 | 0,8 | 0,8 |
| Diameter of rolls (ΓΈ) | mm | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Net weight | kg | 180 | 180 | 215 | 215 | 255 | 255 | 295 |
| OPTIONS | ||||||||
| Hardened and ground rolls | 413577 | -0620 | -0615 | -1015 | -1010 | -1212 | -1208 | -1508 |
| OPTION | Art.no. | |||||||
|---|---|---|---|---|---|---|---|---|
| Digital readout | 41354002 (regardless of size) | |||||||
| Motor-powered bending roll, fixed panel | 413508041 (regardless of size) | |||||||
| Motor-powered bending roll, portable panel | 413508042 (regardless of size) | |||||||
| 380/400V 3-phase | 41354003 (regardless of size) | |||||||
Accessories

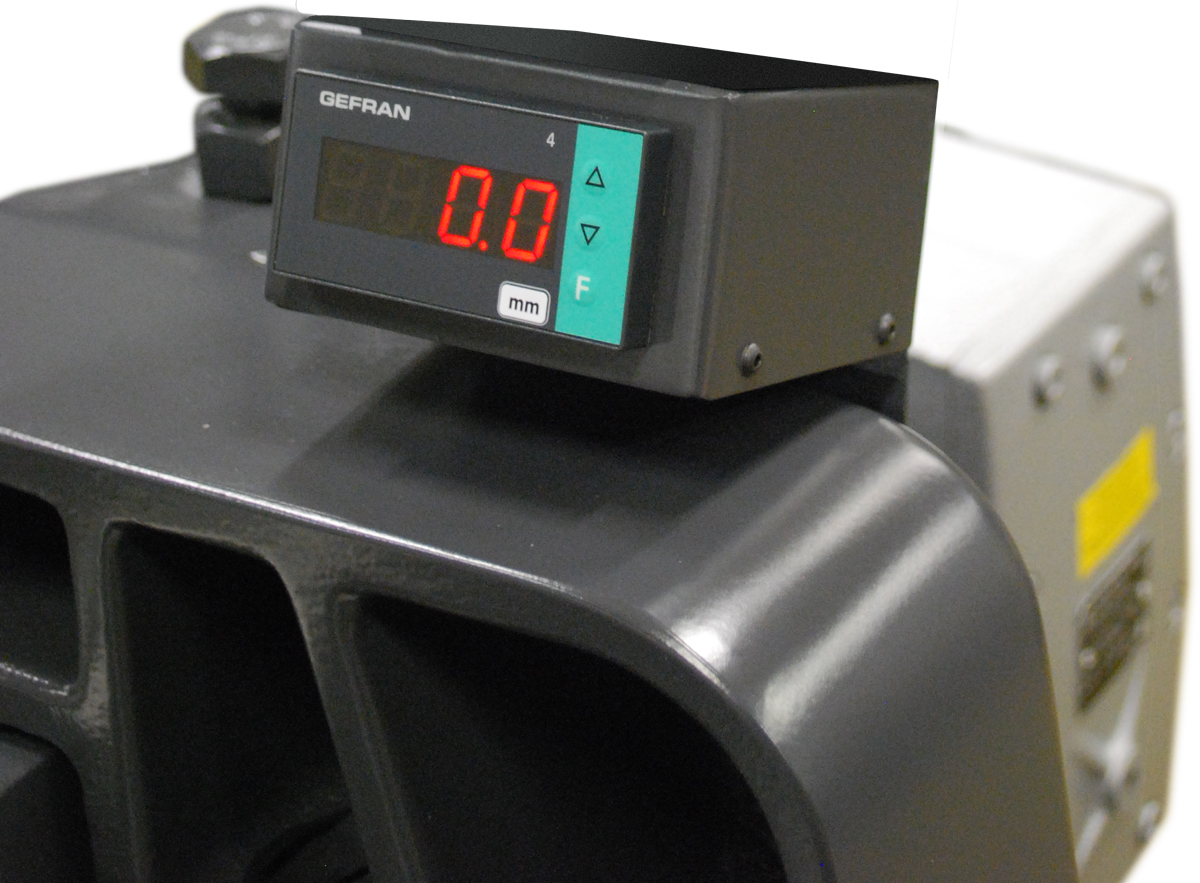

Digital display
Displays the exact bending roll position.

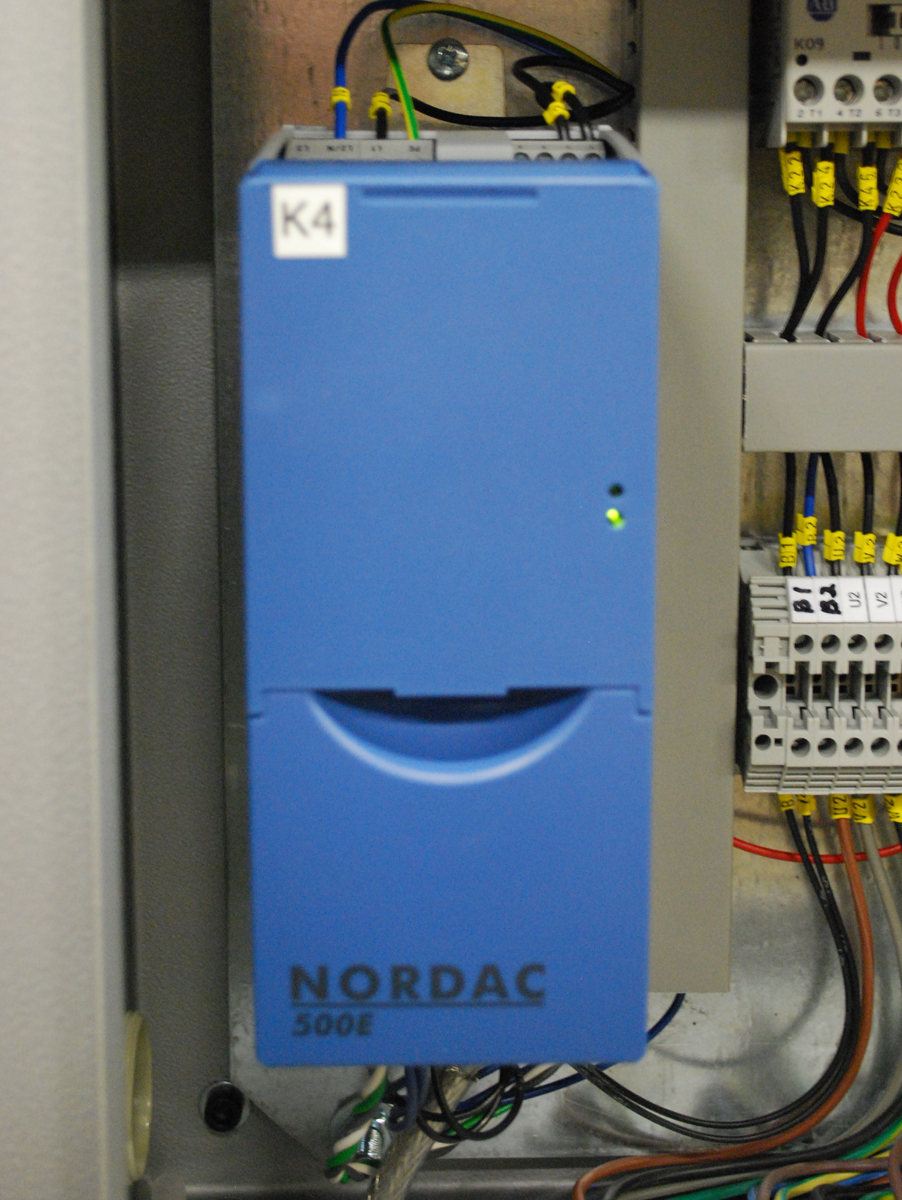

Frequency inverter
Allows a variable working speed when working with complex workpieces. The speed is variable between 20-60Hz which corresponds to 1,7-6,0m/min.

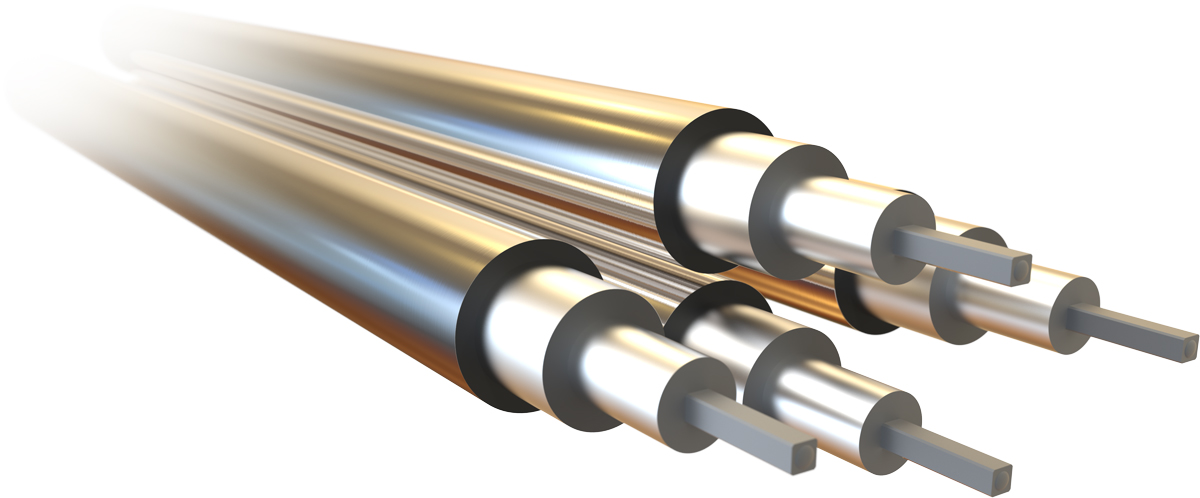

Hardened and ground rolls
Used when working with hard materials like stainless steel. Induction-hardened to a depth of min 3mm, 57HRC hardness.
Support
For support documents, see the product support page.
